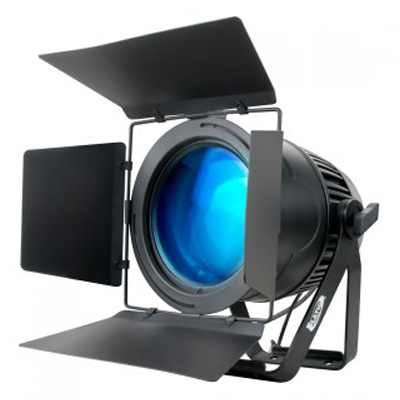

Fuze PAR Z120 IP
Fuze PAR Z120 IP

Fuze PAR Z120 IP

Elation

The IP65 rated FUZE PAR Z120 IP™ is a single source silent operating par luminaire with a 120W Quad Color RGBW COB LED.

Features 7° to 55° motorized zoom, RGBW color mixing, electronic strobe and selectable dimming curve effects, DMX and RDM (remote device management) protocol support, IP rated 5pin XLR and powerCON TRUE1 in/out connections, LCD menu display with 4 touch button control panel, dual adjustable yokes, multiple unit power linking, flicker free operation for TV and FILM, a multi-voltage universal auto switching power supply (110-240v), and removable gel frame and barn doors included.

Description

MANUFACTURER DETAILS: Fuze PAR Z120 IP

Additional information

Manufacturer

Elation

Specification

PHOTOMETRIC DATA
9,112 LUX 847 FC @9.8’ (3m) (7° Full ON)
428 LUX 40 FC @9.8’ (3m) (55° Full ON)

EFFECTS
RGBW Color Mixing
7° – 55° Beam Zoom Range
Electronic Strobe and Dimming
Variable Dimming Curves
64 Color Presets and 14 Unique Color Macros

COLOR
RGBW

CONTROL / CONNECTIONS
(12) DMX Channel Modes (13 Total Channels)
RDM (Remote Device Management)
(4) Button TouchControl Panel
IP Rated 5pin DMX In/Out
powerCON TRUE 1 In/Out

SIZE / WEIGHT
Length: 11.69” (283.7mm)
Width: 14.05” (356.8mm)
Vertical Height: 14.14” (359.2mm)
Weight: 19 lbs. (8.6 kg)

ELECTRICAL / THERMAL
AC 110-240V – 50/60Hz
158W Max Power Consumption
Multiple Unit Power Linking
5°F to 113°F (-15°C to 45°C)

INCLUDED ITEMS
powerCON TRUE1 Power Cable
Gel Frame
Barn Door
