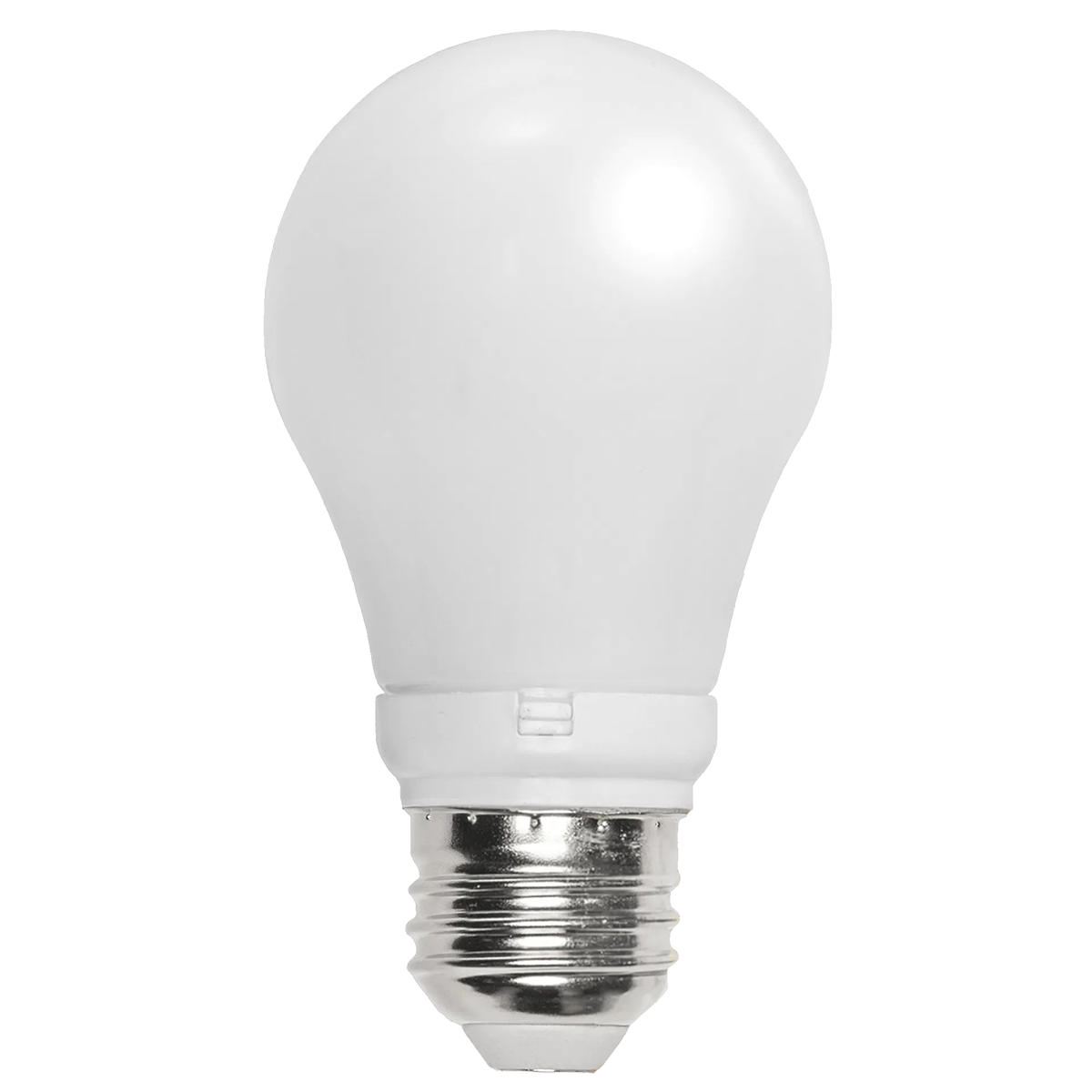

LunaBulb (8 way kit)
LunaBulb (8 way kit)

LunaBulb (8 way kit)

Astera

Looks like a traditional bulb but functions as a pro luminaire. LunaBulb offers filmmakers practicals with perfect skin tones and wireless DMX control. It’s easy to operate via smart device, remote, or console, making it ideal for any event, large or small.

Description

ONE BULB, TWO SHAPES

Thanks to the LunaBulb’s classic look, your lighting blends seamlessly into any setting. It offers the familiar look and feel of a classic, frosted incandescent bulb or a bright and thin hotspot, while performingwith the same efficiency amd power of a professional full-color luminaire.

MATCHES ANY COLOR

Equipped with the revolutionary Titan LED Engine, the LunaBulb has a wide color temperature range and excellent color rendition to maximize flexibility and precision when mixing different light sources. Each bulb is calibrated during the manufacturing process to match the needs of advanced camera sensors.

SMOOTH DIMMING

Having flicker-free, in-sync output regulation and an impressive color consistency for the whole dimming range. LunaBulb qualifies both for subtle practical lighting and complex mapping effects. Unlike classic Tungsten alternatives. LunaBulb does not change the color temperature while dimming down.

SAVE TIME AND EFFORT

Time is always of the essence. With the PrepCase having a built-in battery, you don’t need to worry about when and where you prep your LunaBulbs, because that can be done anytime whether it’s for Standalone, App or DMX control. One display can rule them all.

BATTERY POWERED PREPCASE

We developed the PrepCase with a built-in battery with the purpose of saving time and effort no matter where you are. The PrepCase fully charged will run around 1 hour, when the LunaBulbs is set to 4000K and MAX brightness. You can always hardwire the PrepCase if needed.

CONFIGURE LUNABULBS

Prepare your color temperature, color, or brightness level settings directly in the case, without the need of AC sockets nor App pairing. The interface is so easy that any freelancer can operate it without training. If you want to control via DMX, then you can decide which DMX address you want to start with and all LunaBulbs in the case will receive the same or subsequent DMX addresses.
The units will remember the settings to maximize speed and control.

BLUEMODE LIGHTS

With two button presses, you can have all 8 LunaBulbs in BlueMode, being ready to be paired with the AsteraApp. We added a BlueMode button in the PrepCase to speed up the process when the desire is to control the LunaBulbs with the AsteraApp.

BLUETOOTH BRIDGE

We developed the PrepCase with the BTB function. When prepping your LunaBulbs you will now always have Bluetooth Bridge nearby, which gives you the option to have the PrepCase act as an AsteraBox. Pair your lights to the AsteraApp, make the needed changes and you are all set.

BUILT-IN CRMX

LunaBulb includes LumenRadio’s wireless DMX and RDM, ensuring seamless integration with lighting consoles and other standard controllers. The DMX patch is extremely easy to configure: assign profiles, starting addresses and fixture numbers in no time via the PrepCase or the AsteraApp.

APP CONTROL AND BTB

Take command of your Astera lights! The AsteraApp offers full control over LunaBulbs and other Astera fixtures in the same smart ecosystem, while offering setup features and real-time monitoring.

WHITE REMOTE VIA IR

The WhiteRemote is not only a really useful tool to apply different color temperatures and dimming values, but also a simple and easy alternative to pair LunaBulbs with the AsteraApp when the PrepCase is not available.

Additional information

Manufacturer

Astera

Specification

LED Engine

Titan LED Engine

Colors

RGBMintAmber

Total LED Power

5.25 W

LED Power Draw

3.3 W

Luminous Flux 3200 K (with dome)

149 Lumens

Luminous Flux 4000 K (with dome)

154 Lumens

Luminous Flux 5500 K (with dome)

160 Lumens

Light Output 3200 K @ 1 m (with dome)

18.3 Lux

Light Output 4000 K @ 1 m (with dome)

18.8 Lux

Light Output 5500 K @ 1 m (with dome)

19.6 Lux

CRI (Ra) / TLCI 3200-6500K*

≥96

Beam Angle (with dome)

240°

Field Angle (with dome)

338°

Strobe

0 – 25 Hertz

Pixels

1

AC Input

FP7-E26: 100-120 VAC
FP7-E27: 100-240 VAC
FP7-B22: 100-240 VAC

AC Connector

E26 / E27 / B22

Power Consumption (max.)

4.25 W

Wired DMX

N/A

CRMX Receiver

Built-in

Bluetooth Bridge BTB

Built-in

Wireless Protocols

CRMX, UHF, Bluetooth, WiFi

Wireless Range

CRMX / UHF up to 100 m / 110 yds
Bluetooth up to 3 m / 3.3 yds

RDM Support

Wireless

Infrared Control

Yes

ControlSync

No

TouchSlider

No

Housing Material

Metal & Polycarbonate

IP Rating

IP44 – Depending on socket used

Ambient Operating Temperature

0 – 40°C / 32 – 104 °F

Weight

0.081 kg / 0.179 lbs

Dimensions Classic Look (Ø x H)

Ø 55 mm x 99 mm (E26) / Ø 2.17″ x 3.90″ (E26)
Ø 55 mm x 100 mm (E27) / Ø 2.17″ x 3.94″ (E27)
Ø 55 mm x 98.6 mm (B22) / Ø 2.17″ x 3.88″ (B22)

Dimensions Slim Look (Ø x H)

Ø 27 mm / Ø 33 mm x 91.6 mm (E26) / Ø 1.06″ / Ø 1.30″ x 3.60″ (E26)
Ø 27 mm / Ø 33 mm x 92.6 mm (E27) / Ø 1.06″ / Ø 1.30″ x 3.65″ (E27)
Ø 27 mm / Ø 33 mm x 91.2 mm (B22) / Ø 1.06″ / Ø 1.30″ x 3.59″ (B22)

Mounting Options

E26 / E27 / B22 Socket
