SkyPanel X23
SkyPanel X23

SkyPanel X23

Arri

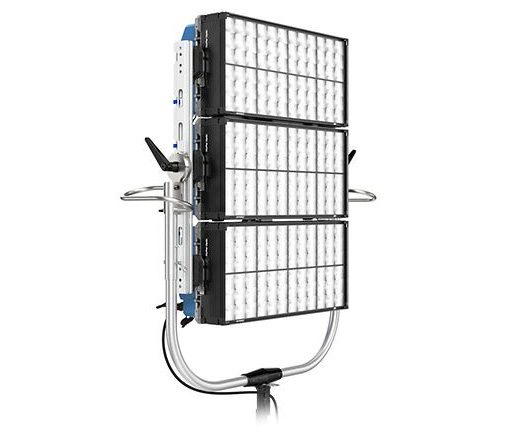

The SkyPanel X23 vertical unit

  • – ARRI’s modular technology delivers up to 14,400 lux at 10 m/33 ft.
  • – Our array concept serves as a soft light, a hard light, or a hybrid combination with 24 pixel zones.
  • – The 2:3 modular configuration offers a single rounded beam when three HyPer Optics are mounted.
  • – X23 only requires one X Modular Yoke, one ALL-WEATHER Control Panel, and one DMX profile.

SkyPanel X23 offers native soft and hard light technology, setting a new bar not only in terms of dimming and color science, but also in light output and beam quality for medium to long throws. With up to 4,800 lux at 10 m / 32.8 ft and eight pixels per panel; dynamic CCT range of 1,500 K – 20,000 K; RGBACL full-spectrum color engine; wireless CRMX control; integrated power supply; advanced networking possibilities; and an IP66 rating, the SkyPanel X23 is an all-weather lighting solution tailored to existing workflows.

Description

The all-weather SkyPanel X23

The SkyPanel X23 is your all-weather lighting solution. Engineered and IP66 certified for resilience against rain, storms, and cold water pressure washers, these lights embody innovation, reliability, and durability.

Soft light

  • High lumen output
  • Flicker-free low end dimming from 100% – 0% for close-ups
  • S60 Adapter for Classic SkyPanel accessories
  • 8 pixels for mapping and effects
  • Efficient and simplified workflow for quick and easy set-up

Hard light

  • Optimal rounded beam with maximum punch and quality
  • Create a long throw fixture with the powerful HyPer Optic
  • Higher output than a 2.5kW open-face HMI lamp
  • Unique, bold colour pixel look
  • Ideal on a cherry picker, through windows, or bounced

Modular experience

  • Fast and easy setup with just one single power cable
  • Benefit from tool-less frames with quick-lock system
  • Seamless control with just one DMX profile or ALL-WEATHER Control Panel

Control options

Explore the multiple control options for SkyPanel X23, including the robust ALL-WEATHER Control Panel, ARRI’s new LiCo App for bluetooth control, LumenRadio’s CRMX wireless integration, and much more!

Software

With LiO23, many new software features await you, such as one single DMX profile, new DMX presets and the new ARRI ALEXA Modes.

Additional information

Manufacturer

Arri

Specification

View the specifications sheet here:
ARRI_SkyPanel X_Data Sheet_EN_20thSept2023
